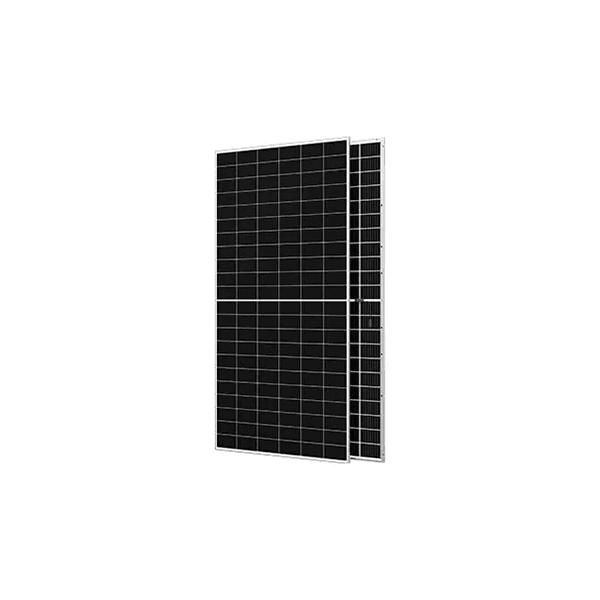

AIKO SP-AIKO-A665-MDE72Dw-BFL 665W N-Type ABC Solar Panel
Brand: AIKO
● In stock — ready to deliver
665W N-Type ABC Solar Panel with advanced All Back Contact cell technology for high power output
24.8% Module Efficiency for excellent solar energy conversion and higher power generation
Bifacial Dual-Glass Design with rear-side power generation for improved overall energy yield
700W Maximum Bifacial Power under BNPI conditions with up to +3% positive power tolerance
1500V DC System Voltage & 5400Pa Front Load with durable dual-glass construction for reliable outdoor performance
15 years warranty and 30 years performance warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
AIKO 665W N-Type ABC Solar Panel Price in Bangladesh
The AIKO 665W Solar Panel is a high-performance N-Type ABC bifacial solar module designed to deliver reliable and efficient power generation for residential, commercial, and large-scale solar systems. With a powerful 665W output, advanced ABC cell technology, and bifacial energy generation, it can capture additional sunlight from the rear side of the panel to improve overall energy yield. Its high efficiency and durable construction make it a practical choice for maximizing solar power production in Bangladesh. Buy the AIKO 665W Solar Panel from Cyber Energy BD for a dependable solar energy solution.
AIKO-A665-MDE72Dw-BFL 665W Solar Panel Full Specification
Parameter | Value |
|---|---|
General Specifications | |
Brand | AIKO Solar |
Model | AIKO-A665-MDE72Dw |
Series | Stellar 3N+72 |
Product Type | Bifacial Dual-Glass Solar Module |
Cell Technology | N-type ABC (All Back Contact) |
No. of Cells | 144 (6×24) |
Electrical Characteristics (STC: AM1.5 1000W/m² 25°C) | |
Maximum Power (Pmax) | 665W |
Open Circuit Voltage (Voc) | 55.20V |
Short Circuit Current (Isc) | 15.45A |
Voltage at Maximum Power (Vmp) | 45.09V |
Current at Maximum Power (Imp) | 14.75A |
Module Efficiency | 24.8% |
Power Tolerance | 0 ~ +3% |
Electrical Characteristics (NOCT: AM1.5 800W/m² 20°C 1m/s) | |
Maximum Power (Pmax) | 531W |
Open Circuit Voltage (Voc) | 51.53V |
Short Circuit Current (Isc) | 13.26A |
Voltage at Maximum Power (Vmp) | 43.25V |
Current at Maximum Power (Imp) | 12.28A |
Electrical Characteristics (BNPI: Front 1000W/m², Rear 135W/m², 25°C) | |
Maximum Power (Pmax) | 700W |
Open Circuit Voltage (Voc) | 55.20V |
Short Circuit Current (Isc) | 16.26A |
Voltage at Maximum Power (Vmp) | 45.09V |
Current at Maximum Power (Imp) | 15.52A |
Mechanical Data | |
Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
Weight | 32.2 kg ±3% |
Glass | Dual glass, 2.0 + 2.0mm coated semi-tempered glass |
Frame | Anodized aluminum |
Cable | 4mm² (IEC) 12AWG (UL) +400mm, -200mm/±1400mm or Customized Length |
Junction Box | IP68, 3 bypass diodes |
Connector | MC4 Compatible / MC4-EVO2 |
Package Detail | 36 pcs per pallet / 144 pcs per 20’GP / 720 pcs per 40’HC |
Temperature Ratings (STC) | |
Temperature Coefficient of Isc | +0.05%/°C |
Temperature Coefficient of Voc | -0.22%/°C |
Temperature Coefficient of Pmax | -0.26%/°C |
Installation Guide | |
Operation Temperature | -40°C ~ +70°C |
Maximum Series Fuse Rating | 30A |
Protection Class | Class II |
Maximum System Voltage | DC1500V |
Maximum Static Loading (Front) | 5400Pa |
Maximum Static Loading (Back) | 2400Pa |
Fire Rating | IEC Class A |
