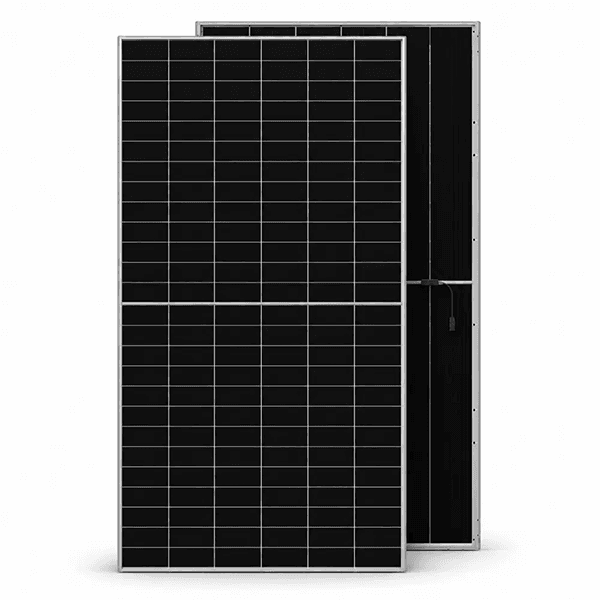

AIKO SP-AIKO-A770-GRH78Dw-BFL 770W N-Type ABC Solar Panel
Brand: AIKO
● In stock — ready to deliver
770W High-Power Bifacial Solar Panel with advanced N-Type ABC technology for residential, commercial, and industrial solar systems
24.0% Module Efficiency for high-performance solar energy generation
Up to 845W Bifacial Power Output under BNPI test conditions for enhanced energy production
Dual-Glass Solar Module Design with 156 cells for durability and reliable performance
1500V Maximum System Voltage with IP68-rated junction box for dependable solar installations
15 years product warranty; 30 years performance warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
AIKO 770W N-Type ABC Solar Panel Price in Bangladesh
The AIKO 770W Solar Panel is a high-performance solar energy solution featuring advanced N-Type ABC (All Back Contact) technology and bifacial design for efficient solar power generation. With its 770W power output, this solar panel is suitable for residential, commercial, and industrial solar installations. Its advanced cell technology helps improve energy production and supports reliable solar performance. Buy the AIKO 770W Solar Panel in Bangladesh from Cyber Energy BD for an advanced solar solution for your energy needs.
AIKO SP-AIKO-A770-GRH78Dw-BFL 770W Full Specification
Parameter | Value |
|---|---|
General Specifications | |
Brand | AIKO Solar |
Model | AIKO-A770-GRH78Dw |
Series | Stellar 2N+78 |
Product Type | Bifacial Dual-Glass Solar Module |
Cell Technology | N-type ABC (All Back Contact) |
No. of Cells | 156 (2N+78) |
Electrical Characteristics (STC: AM1.5 1000W/m² 25°C) | |
Maximum Power (Pmax) | 770W |
Open Circuit Voltage (Voc) | 58.72V |
Short Circuit Current (Isc) | 16.64A |
Voltage at Maximum Power (Vmp) | 48.77V |
Current at Maximum Power (Imp) | 15.79A |
Module Efficiency | 24.0% |
Power Tolerance | 0 ~ +3% |
Electrical Characteristics (BNPI: AM1.5, front 1000W/m², rear 135W/m², 25°C) | |
Maximum Power (Pmax) | 845W |
Open Circuit Voltage (Voc) | 58.72V |
Short Circuit Current (Isc) | 18.26A |
Voltage at Maximum Power (Vmp) | 48.80V |
Current at Maximum Power (Imp) | 17.32A |
Mechanical Data | |
Dimensions (L × W × H) | 2465 × 1303 × 33 mm |
Weight | 39.8 kg ±3% |
Glass | Dual glass, 2.0 + 2.0mm coated semi-tempered glass |
Frame | Anodized aluminum alloy |
Junction Box | IP68, 3 bypass diodes |
Connector Type | MC4 Compatible |
Cable | 4mm² (IEC) 12AWG (UL) |
Temperature Ratings (STC) | |
Temperature Coefficient of Isc | +0.05%/°C |
Temperature Coefficient of Voc | -0.22%/°C |
Temperature Coefficient of Pmax | -0.26%/°C |
Operating Parameters | |
Operation Temperature | -40°C ~ +85°C |
Maximum System Voltage | DC1500V |
Maximum Series Fuse Rating | 30A |
Protection Class | Class II |
Fire Rating | IEC Class A |
Mechanical Loading | |
Front Side Maximum Static Loading (Snow) | 5400Pa |
Rear Side Maximum Static Loading (Wind) | 2400Pa |
