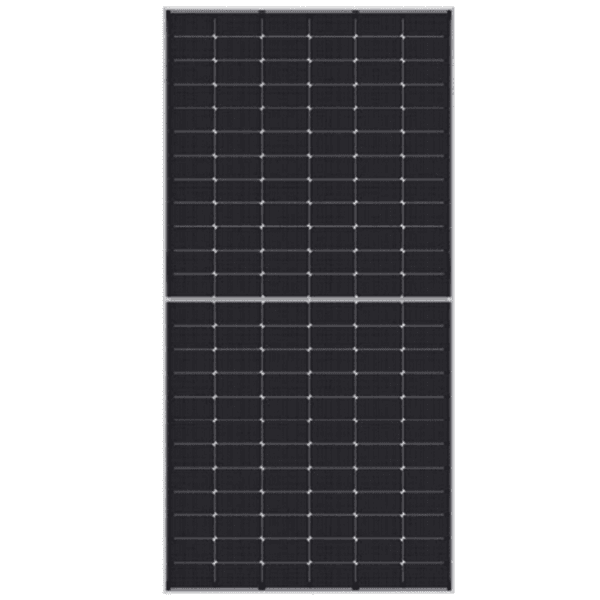

Jinko JKM620N-78HL4-BDV BFL 620W Tiger Neo N-Type TOPCon Solar Panel

Maximum Power (Pmax)

620 W

Module Efficiency

22.65%

Power Tolerance

0 ~ +3%

Voltage at Pmax (Vmpp)

45.96 V

Current at Pmax (Impp)

13.49 A

Open Circuit Voltage (Voc)

54.80 V

Short Circuit Current (Isc)

14.40 A

Electrical Characteristics (NOCT**)

Maximum Power (Pmax)

467 W

Voltage at Pmax (Vmpp)

43.08 V

Current at Pmax (Impp)

10.84 A

Open Circuit Voltage (Voc)

51.32 V

Short Circuit Current (Isc)

11.60 A

Mechanical Characteristics

Cell Type

N-type Mono-crystalline

Number of Cells

156 (3x26)

Dimensions

2465 mm (L) x 1134 mm (W) x 30 mm (D)

Weight

33.2 kg

Front Glass

2.0 mm, Anti-Reflection Coating, Heat Strengthened Glass

Rear Glass

2.0 mm, Heat Strengthened Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Rated

Cables

4.0 mm², Portrait: 350 mm, Landscape: 1400 mm (customizable length)

Connector

MC4 compatible (e.g., QC4.10-35-1)

Temperature Characteristics

Nominal Operating Cell Temperature (NOCT)

45 ± 2 °C

Temperature Coefficient of Isc

+0.045 %/°C

Temperature Coefficient of Voc

-0.290 %/°C

Temperature Coefficient of Pmax

-0.340 %/°C

Operating Conditions

Maximum System Voltage

1500 V DC (IEC)

Maximum Series Fuse Rating

30 A

Operating Temperature

-40°C to +85°C

Mechanical Load (Front)

5400 Pa

Mechanical Load (Rear)

2400 Pa

Bifaciality Factor

80 ± 5%
