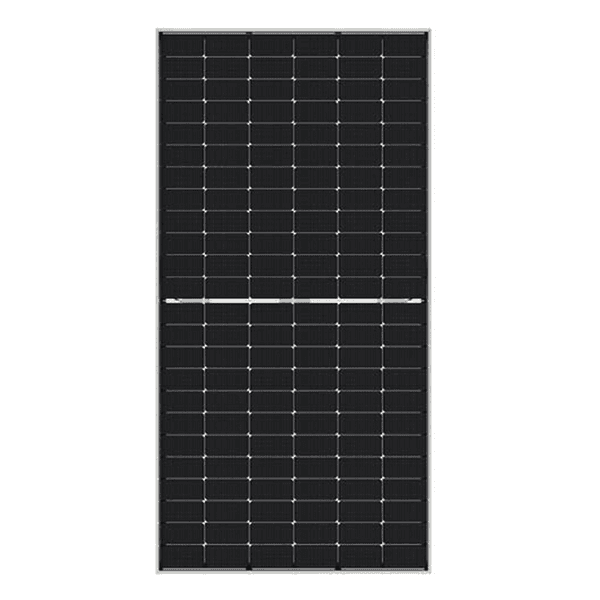

Jinko 66HL4M-BDV BFL 625W Tiger Neo N-Type TOPCon Solar Panel
Brand: Jinko
● In stock — ready to deliver
625W High-Power Solar Panel with 23.14% module efficiency for residential, commercial, and utility-scale solar systems
N-Type Monocrystalline TOPCon Technology with 132 cells for efficient solar power generation
Bifacial Dual-Glass Design with an 80 ± 5% bifaciality factor for additional rear-side energy gain
1500V DC Maximum System Voltage with 40.88V Vmp and 15.29A Imp for solar system integration
IP68-Rated Junction Box & 30A Maximum Series Fuse Rating and 12 years warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Jinko 625W Solar Panel N-Type TOPCon Price in Bangladesh
The Jinko 625W Tiger Neo N-Type TOPCon Solar Panel is a high-performance solar panel designed for residential, commercial, and large-scale solar power systems. Featuring advanced N-Type TOPCon technology and a bifacial dual-glass design, it supports efficient solar energy generation and can capture additional sunlight from the rear side under suitable installation conditions. With a 625W power output, this panel is a suitable choice for reducing electricity costs and improving solar system performance. Buy the Jinko 625W Solar Panel in Bangladesh from Cyber Energy BD for your solar energy needs.
Jinko 66HL4M-BDV BFL 625W Full Specification
Attribute | Specification |
|---|---|
Model Name | Jinko Tiger Neo N-Type 66HL4M-BDV |
Rated Peak Power (Pmax) | 625 Wp |
Module Efficiency | 23.14% |
Cell Type | N-Type Monocrystalline, TOPCon |
Number of Cells | 132 (6x22) |
Power Tolerance | 0 ~ +3W |
Voltage at Pmax (Vmp) | 40.88 V |
Current at Pmax (Imp) | 15.29 A |
Open Circuit Voltage (Voc) | 49.28 V |
Short Circuit Current (Isc) | 16.14 A |
Max System Voltage | 1500V DC (IEC) |
Max Series Fuse Rating | 30 A |
Operating Temperature | -40℃ to +85℃ |
Temperature Coeff. of Pmax | -0.29 %/°C |
Temperature Coeff. of Voc | -0.24 %/°C |
Temperature Coeff. of Isc | +0.048 %/°C |
NOCT (Nominal Operating Cell Temp.) | 45 ± 2°C |
Dimensions (L x W x H) | 2384 mm x 1134 mm x 30 mm |
Weight | 32.3 kg |
Front Glass | 2.0 mm, heat strengthened glass, anti-reflection coating |
Rear Glass | 2.0 mm, heat strengthened glass |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68 Rated, 3 Bypass Diodes |
Output Cables | TUV 1x4.0mm², Length: 400mm (standard) |
Connector | MC4 Compatible |
Bifaciality Factor | 80 ± 5% |
