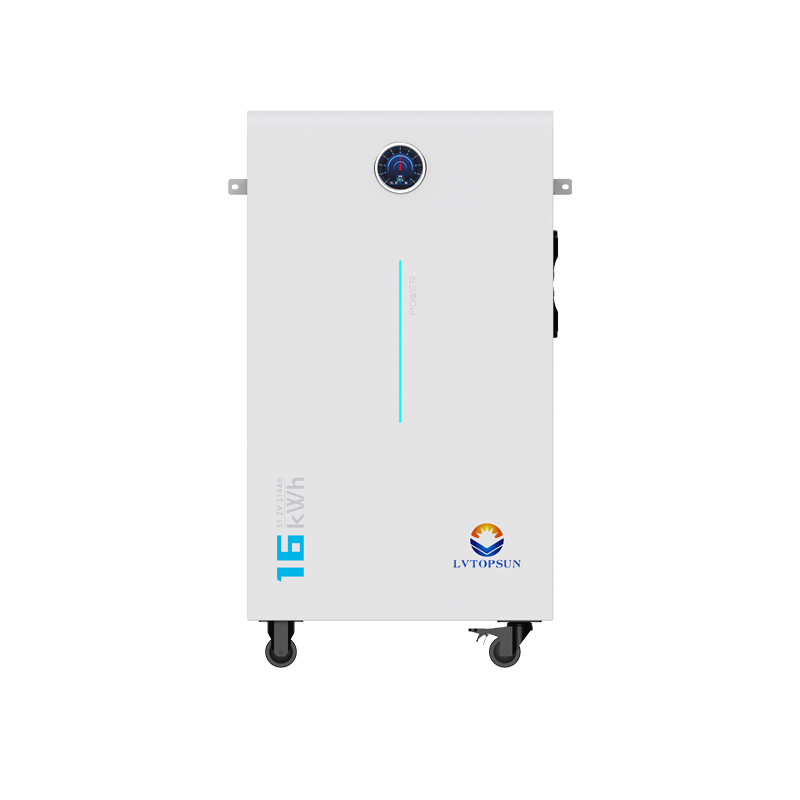

LVTOPSUN G4 51.2V 314Ah LiFePO4 Battery (LVTS-512314-G4) Price in Bangladesh

LVTOPSUN G4 16.08kWh Lithium Battery – Overview

The LVTOPSUN G4 51.2V 314Ah LiFePO4 Battery (LVTS-512314-G4) is a high-capacity lithium energy storage solution designed for residential, commercial, industrial, and off-grid solar applications.

With a 51.2V nominal voltage, 314Ah capacity, and approximately 16.08kWh nominal energy capacity, this battery provides substantial energy storage for solar systems, backup power, and critical loads.

Built with Lithium Iron Phosphate (LiFePO4) chemistry and an integrated smart Battery Management System (BMS), the LVTOPSUN G4 is designed to provide reliable performance, long cycle life, and multiple layers of battery protection.

Its CAN and RS485 communication interfaces allow integration with compatible hybrid and off-grid inverters, while the scalable design makes it possible to expand energy storage capacity by connecting multiple compatible battery units.

Available from Cyber Energy BD.

---

Key Features of LVTOPSUN G4 51.2V 314Ah Battery

🔋 16.08kWh High-Capacity Energy Storage

With a nominal capacity of 51.2V × 314Ah = approximately 16.08kWh, the LVTOPSUN G4 provides substantial energy storage for homes, businesses, and solar installations.

It can store excess solar energy during the day for use at night or during power outages.

⚡ High Discharge Capability

The battery supports up to 150A maximum continuous discharge current and a peak discharge current of 200A for up to 3 seconds, subject to the manufacturer’s operating conditions.

This makes it suitable for systems with significant electrical loads and short-duration startup surges.

🧠 Smart Battery Management System (BMS)

The integrated BMS continuously monitors important battery parameters and provides protection against conditions such as:

• Overcharging
• Over-discharging
• Over-current
• Over-temperature
• Short circuits
• Cell imbalance

The BMS also helps balance individual cells and supports safer, more reliable battery operation.

🔄 Long Cycle Life

The battery is specified for more than 6,000 cycles at 80% Depth of Discharge (DOD) under specified test conditions.

This long cycle life can help reduce the frequency of battery replacement compared with conventional lead-acid storage systems.

🧪 LiFePO4 Battery Chemistry

Lithium Iron Phosphate (LiFePO4) chemistry is widely used in modern energy-storage applications because of its combination of thermal stability, safety, long cycle life, and reliable performance.

📡 CAN & RS485 Communication

Built-in CAN and RS485 communication ports allow the battery to communicate with compatible solar inverters and energy management systems.

Compatibility should always be confirmed for the specific inverter model before installation.

🔗 Scalable Energy Storage

Multiple compatible battery units can be connected in parallel to increase the total available energy storage capacity, making the system suitable for future expansion.

🌡️ Wide Operating Temperature Range

The specified operating range supports:

• Charging: 0°C to 50°C
• Discharging: -20°C to 60°C

This provides flexibility for different installation environments when operated within the manufacturer’s recommended conditions.

🛡️ IP54 Protection

The battery enclosure is rated IP54, providing protection against limited dust ingress and water splashing.

For long-term reliability, installation in a clean, dry, and properly ventilated location is recommended.

---

LVTOPSUN G4 Battery Specifications

Specification	Details
Brand	LVTOPSUN
Series	G4
Model	LVTS-512314-G4
Battery Chemistry	LiFePO4
Nominal Voltage	51.2V
Nominal Capacity	314Ah
Nominal Energy	Approximately 16.08kWh
Maximum Charge Current	150A
Maximum Discharge Current	150A
Peak Discharge Current	200A for 3 seconds
Voltage Range	44.8V – 57.6V
Recommended DOD	>90%
Cycle Life	>6,000 cycles @ 80% DOD, 25°C
Communication	CAN, RS485
Charging Temperature	0°C to 50°C
Discharging Temperature	-20°C to 60°C
Storage Temperature	-10°C to 35°C
Relative Humidity	5%–95% RH, non-condensing
Protection Rating	IP54
Dimensions	780 × 550 × 220mm
Weight	Approximately 175kg
Installation	Floor-standing / Rack-mountable with suitable kit
Certifications	CE, UN38.3, IEC62619, MSDS
Warranty	10 Years Manufacturer’s Limited Warranty

Specifications may vary depending on the production batch or product version. Please confirm the latest manufacturer specifications before purchase.

---

Benefits of LVTOPSUN G4 16.08kWh LiFePO4 Battery

☀️ Store Excess Solar Energy

Store surplus electricity generated by your solar panels during the day and use the stored energy when solar generation is low or unavailable.

🔌 Reliable Backup Power

When integrated with a compatible inverter, the battery can provide backup power for essential residential, commercial, and industrial loads during grid interruptions.

💰 Reduce Dependence on Grid Electricity

Solar energy can be stored and used according to your energy requirements, helping optimize solar consumption and reduce reliance on grid electricity.

♻️ Long-Term Energy Storage Solution

The combination of LiFePO4 chemistry, high cycle life, and efficient energy storage makes the battery suitable for long-term renewable energy systems.

🛡️ Multiple Layers of Protection

The integrated BMS provides important protection functions to help maintain safe and stable battery operation.

---

Recommended Applications

The LVTOPSUN G4 51.2V 314Ah LiFePO4 Battery is suitable for:

• 🏠 Residential solar energy storage
• 🏢 Commercial backup power
• 🏭 Industrial energy storage
• ☀️ Hybrid solar systems
• 🔋 Off-grid solar systems
• ⚡ Grid backup systems
• 🏡 Whole-home backup applications
• 📡 Telecommunication backup systems
• 🌾 Remote and agricultural installations
• 🔌 Solar systems with compatible hybrid inverters

---

Inverter Compatibility

The LVTOPSUN G4 supports CAN and RS485 communication, allowing integration with compatible inverter systems.

It may be compatible with inverter brands such as Deye, Growatt, Solis, Victron, and other systems that support the battery’s communication protocols.

Important: Compatibility depends on the exact inverter model, firmware, communication protocol, and battery configuration. Always confirm compatibility with Cyber Energy BD before purchasing or installing the battery.

---

Installation & Safety

Because this is a high-capacity 51.2V lithium battery weighing approximately 175kg, professional installation is strongly recommended.

For safe and reliable operation:

• Install the battery in a cool, dry, and well-ventilated location.
• Keep it away from direct sunlight, excessive heat, moisture, and flammable materials.
• Ensure the installation surface can safely support the battery’s weight.
• Use correctly sized cables, connectors, breakers, and protection equipment.
• Ensure the inverter is compatible with the battery’s voltage and communication system.
• Follow the manufacturer’s installation and commissioning instructions.
• Do not open, modify, or attempt to repair the battery yourself.
• Ensure proper grounding and electrical protection are installed.

---

LVTOPSUN G4 51.2V 314Ah Battery Price in Bangladesh

Looking for the LVTOPSUN G4 51.2V 314Ah LiFePO4 Battery price in Bangladesh?

The final price may vary depending on market conditions, import costs, availability, quantity, and installation requirements.

Contact Cyber Energy BD for the latest price, stock availability, warranty information, delivery options, and system compatibility.

---

Why Choose LVTOPSUN G4 From Cyber Energy BD?

Cyber Energy BD provides solar panels, lithium batteries, inverters, and renewable energy solutions for residential, commercial, and industrial customers in Bangladesh.

The LVTOPSUN G4 51.2V 314Ah is a powerful option for customers looking for a large-capacity LiFePO4 battery with long cycle life, smart BMS protection, inverter communication, and scalable energy storage.

Whether you are building a home solar backup system, commercial energy-storage solution, or off-grid power system, this battery can serve as a strong foundation for a modern energy-storage setup.

Cyber Energy BD — Reliable Solar & Energy Storage Solutions for Bangladesh.
