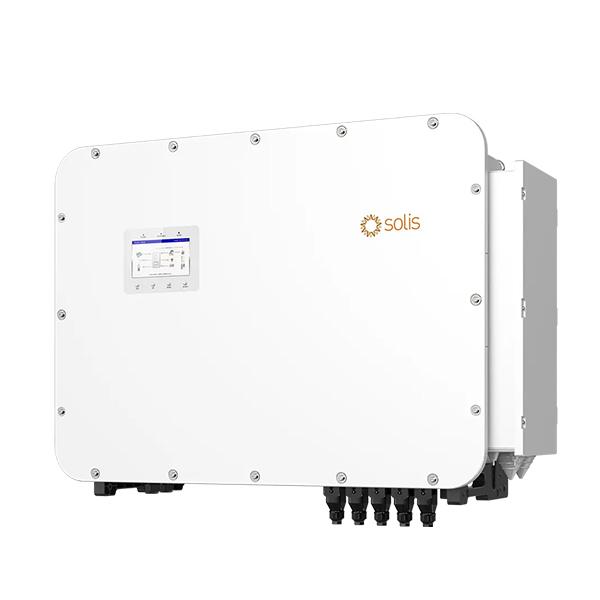

Solis S6-EH3P125K10-NV-YD-H 125kW 3-Phase High Voltage Hybrid Inverter

Input DC (PV side)

Recommended max. PV array size

250 kW

Max. usable PV input power

250 kW

Max. input voltage

1000 V

Rated voltage

600 V

Start-up voltage

180 V

MPPT voltage range

150 – 950 V

Max. input current

10 × 42 A

Max. current per DC input

42 A

Max. short circuit current

10 × 60 A

MPPT number / Max. input strings number

10 / 20

Battery

Battery type

Li-ion

Battery voltage range

300 – 950 V

Max. charge / discharge current

100 A × 2 / 100 A × 2

Number of battery port / Number of BMS port

2

Max. charge / discharge current of each port

100 A

Communication

CAN

Output AC (Grid side)

Rated output power

125 kW

Max. apparent output power

125 kVA

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated grid frequency

50 Hz / 60 Hz

Rated grid output current

189.9 A / 180.4 A

Power factor

> 0.99 (0.8 leading – 0.8 lagging)

THDi

< 3%

Input AC (Grid side)

Max. input power

164.5 kW / 173.2 kW

Input voltage range

304 – 460 V

Max. input current

250 A

Output AC (Back-up)

Rated output power

125 kW

Max. apparent output power

1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms

Back-up switch time

< 10 ms

Rated output voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated frequency

50 Hz / 60 Hz

Rated output current

189.9 A / 180.4 A

Max. AC passthrough current

189.9 A / 180.4 A

THDv (@linear load)

< 3%

Input AC (Generator side)

Max. input power

125 kW

Rated input current

189.9 A / 180.4 A

Rated input voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated input frequency

50 Hz / 60 Hz

Efficiency

Max. efficiency

97.5%

EU efficiency

97.2%

BAT charged by PV / AC max. efficiency

98.2% / 97.0%

Battery discharged efficiency

97.0%

Protection

Surge protection

DC Type II / AC Type II

Output over current protection

Yes

Insulation resistance monitoring

Yes

Residual current detection

Yes

Integrated PV switch

Yes

DC reverse-polarity protection

Yes

Protection class / Over voltage category

I / DC II, AC III

Integrated AFCI 2.0

Optional

Anti-islanding protection

Yes

General Data

Max. power per phase (grid & back up)

33% rated power

Dimensions (W × H × D)

1174 × 814 × 400 mm

Weight

170 kg

Inverter topology

Non-isolated

Self-consumption

< 45 W

Operating temperature range

-25 – +60°C

Relative humidity

0 – 100%

Ingress protection

IP66

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

3000 m

Grid connection standard

G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/UNE 217001, CEI 0-21, C10/11, NRS 097-2-1, TOR, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA N° 140, PORTARIA N° 515

Safety / EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

Features

PV connection

MC4 connector

Battery connection

Terminal connector

AC connection

Terminal block

Display

7.0″ LCD display & Bluetooth + APP
