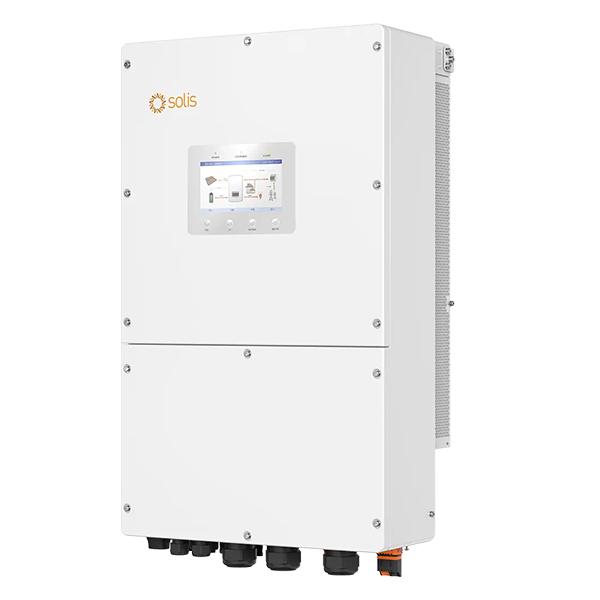

Solis S6-EH3P30K-H 30kW 3-Phase High Voltage Hybrid Inverter
Brand: Solis
● In stock — ready to deliver
30kW Three-Phase High Voltage Hybrid Inverter for commercial solar systems
97.8% Maximum Efficiency for efficient solar energy conversion
150–800V High-Voltage Battery Support with 33kW charge/discharge power
IP66 Protection & Under 10ms Backup Switching for reliable power backup
60kW Maximum PV Input Power with 3 MPPTs and 6 strings & 5 years warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Solis 30kW 3-Phase High Voltage Hybrid Inverter Price in Bangladesh
The Solis S6-EH3P30K-H 30kW 3-Phase High Voltage Hybrid Inverter is designed for commercial and industrial solar power systems, delivering efficient energy conversion and reliable power management. It supports high-voltage battery integration, helping optimise solar energy usage and provide backup power when needed. With its three-phase design, this hybrid inverter is a suitable solution for businesses seeking dependable solar energy performance. Cyber Energy BD offers solar power solutions to meet your energy needs in Bangladesh.
Solis S6-EH3P30K-H High Voltage Hybrid Inverter Full Specification
Specification | Solis S6-EH3P30K-H |
Product Type | Three Phase High Voltage Hybrid Inverter |
Rated AC Output | 30 kW |
Max. Apparent Output Power (Grid) | 30 kVA |
Backup Rated Output Power | 30 kW |
Backup Surge Capacity | 1.6× rated power for 2 s |
Backup Switch Time | < 10 ms |
Battery Voltage | 150 - 800 V |
Battery Type | Li-ion (high-voltage) |
Max Battery Charge/Discharge Current | 70 A × 2 (140 A combined with ports paralleled) |
Battery Ports | 2 |
Max. Charge / Discharge Power | 33 kW |
Max. Charge / Discharge Power per Battery Input | 33 kW |
Recommended Max PV Array | 60 kW |
Max Usable PV Input | 60 kW |
Max PV Voltage | 1000 V |
MPPT Voltage Range | 150 - 850 V |
Start-up Voltage | 180 V |
MPPT Number | 3 MPPTs and 6 strings |
Max PV Input Current | 40 A per MPPT |
Max PV Short-Circuit Current | 60 A per MPPT |
Grid Voltage | Three phase 3/N/PE, 220/380 V or 230/400 V |
Grid Frequency | 50/60 Hz |
Rated Output Current | 45.6 A / 43.3 A |
Max. AC Passthrough Current | 91.2 A / 86.6 A |
Generator Input | Yes, max. 30 kW |
Parallel Operation | Up to 6 units (on- and off-grid) |
Max. Efficiency | 97.8% |
EU Efficiency | 97.4% |
Ingress Protection | IP66 |
Weight | 73 kg |
Dimensions (W × H × D) | 530 × 880 × 290 mm |
Cooling | Intelligent redundant fan cooling |
Topology | Transformerless |
Operating Temperature | -25 to +60 °C |
Max. Altitude | 4000 m |
Display | LCD, Bluetooth + app |
Communication | CAN, RS485, Ethernet; optional Wi-Fi, cellular, LAN |
AFCI | Yes (activation required) |
