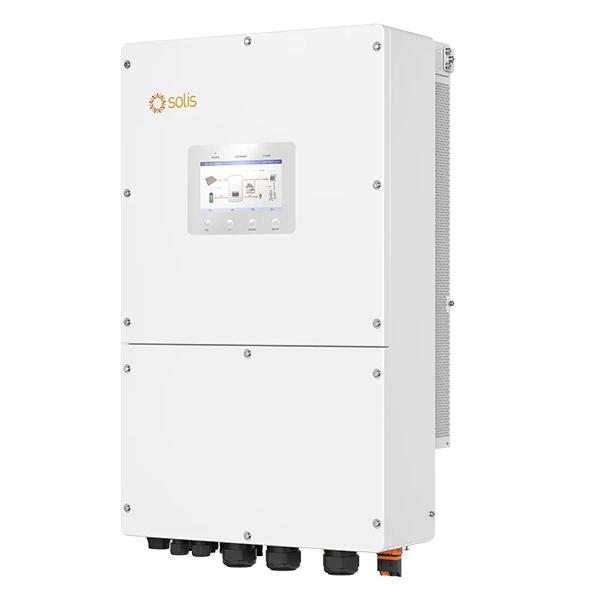

Solis S6-EH3P40K-H 40kW 3-Phase High Voltage Hybrid Inverter
Brand: Solis
● In stock — ready to deliver
40kW Three-Phase High Voltage Hybrid Inverter for commercial solar systems
97.8% Maximum Efficiency for efficient solar energy conversion
150–800V High-Voltage Battery Support with 44kW charge/discharge power
IP66 Protection & Under 10ms Backup Switching for reliable power backup
80kW Maximum PV Input Power with 4 MPPTs and 8 strings & 5 years warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Solis 40kW 3-Phase High Voltage Hybrid Inverter Price in Bangladesh
The Solis S6-EH3P40K-H 40kW 3-Phase High Voltage Hybrid Inverter is designed for commercial and industrial solar power systems, offering efficient energy conversion and reliable power management. It supports high-voltage batteries, enabling efficient energy storage and backup power during grid outages. With advanced solar input capabilities and three-phase operation, this inverter helps businesses optimise solar energy use and improve energy independence. Cyber Energy BD provides reliable solar power solutions for commercial and industrial applications in Bangladesh.
Solis S6-EH3P40K-H High Voltage Hybrid Inverter Full Specification
Parameter | Value |
|---|---|
Input DC (PV side) | |
Max Usable PV Input Power | 80kW |
Recommended Max PV array size | 80kW |
Max. input voltage | 1000V |
Rated voltage | 600V |
Start-up voltage | 180V |
MPPT voltage range | 150-850V |
Full load MPPT voltage range | 500-850V |
Max. input current | 40A/40A/40A/40A |
Max. short circuit current | 60A/60A/60A/60A |
MPPT number/Max input strings number | 4/8 |
Max input power per MPPT | 24kW |
Battery | |
Battery Type | Li-ion |
Battery Voltage range | 150 – 800V |
Max. charge / discharge power | 44kW |
Max. charge / discharge current | 70A*2 |
No. of Battery Input | 2 |
Communication | CAN/RS485 |
Output AC (Grid side) | |
Rated output power | 40kW |
Max. apparent output power | 40kVA |
Rated grid voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
The grid voltage range | 304-460V |
Relay trip current/Duration | 20.8A/10ms |
Rated grid frequency | 50Hz/60Hz |
AC grid frequency range | 45-55Hz/55-65Hz |
Rated grid output current | 60.8A/57.7A |
Max. output current | 60.8A/57.7A |
Power Factor | > 0.99 (0.8 leading – 0.8 lagging) |
THDi | < 3% |
Input AC (Grid side) | |
Max. AC passthrough current | 121.6A/115.4A |
Rated input voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated input frequency | 50Hz/60Hz |
Input AC (Generator) | |
Max. input power | 40kW |
Rated input current | 60.8A/57.7A |
Rated input voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated input frequency | 50Hz/60Hz |
Output AC (Back-up) | |
Rated output power | 40kW |
Max. apparent output power | 1.6 times of rated power, 2 S |
Back-up switch time | <10ms |
Rated output voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated frequency | 50Hz/60Hz |
Rated output current | 60.8A/57.7A |
Max. imbalance power per phase | 33% rated power |
THDv(@linear load) | <2% |
Efficiency | |
Max. efficiency | 97.8% |
EU efficiency | 97.4% |
BAT charged by PV Max. efficiency | 98.5% |
BAT charged/discharged to AC Max. efficiency | 97.5% |
MPPT Efficiency | 99.9% |
Protection | |
Anti-islanding protection | Yes |
Insulation Resistor detection | Yes |
Output over current protection | Yes |
Output short protection | Yes |
Output over voltage protection | Yes |
DC switch | Yes |
DC reverse polarity protection | Yes |
DC Surge Protection/AC Surge Protection | Type II |
Integrated AFCI 2.0 | Optional |
General data | |
Dimensions(W/H/D) | 530*880*290mm |
Weight | 73kg |
Topology | Transformerless |
Self consumption (Night) | <35W |
Operation temperature range | -25℃~+60℃ |
Relative humidity | 0-95% |
Ingress protection | IP66 |
Cooling concept | Intelligent redundant fan-cooling |
Max.operation altitude | 4000m |
