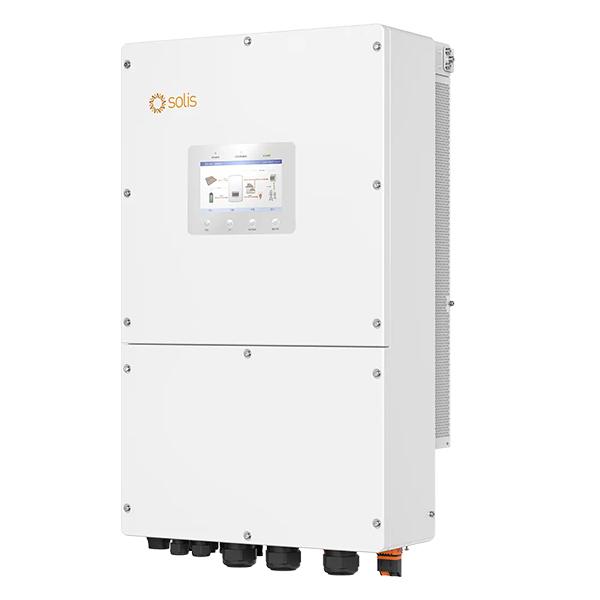

Solis S6-EH3P50K-H 50kW 3-Phase High Voltage Hybrid Inverter
Brand: Solis
● In stock — ready to deliver
50kW Three-Phase High Voltage Hybrid Inverter for commercial and industrial solar systems
97.8% Maximum Efficiency for high-performance energy conversion
150–800V Battery Voltage Range with 55kW charge/discharge power
IP66-Rated Protection with intelligent fan cooling and transformerless design
100kW Maximum PV Array Capacity with 4 MPPTs & 5 years warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Solis 50kW 3-Phase High Voltage Hybrid Inverter Price in Bangladesh
The Solis S6-EH3P50K-H 50kW 3-Phase High Voltage Hybrid Inverter is designed for large-scale commercial and industrial solar power systems, delivering efficient energy conversion and reliable power management. It supports high-voltage battery integration, advanced solar energy utilization, and backup power functionality to ensure a stable and dependable energy supply. With its high-capacity three-phase design, this hybrid inverter is an excellent solution for businesses seeking improved energy efficiency, reduced electricity costs, and greater energy independence. Get the original Solis 50kW Hybrid Inverter in Bangladesh from Cyber Energy BD.
Solis S6-EH3P50K-H 50kW High Voltage Hybrid Inverter Full Specification
Parameter | Value |
|---|---|
Input DC (PV side) | |
Max Usable PV Input Power | 96kW |
Recommended Max PV array size | 100kW |
Max. input voltage | 1000V |
Rated voltage | 600V |
Start-up voltage | 180V |
MPPT voltage range | 150-850V |
Full load MPPT voltage range | 600-850V |
Max. input current | 40A/40A/40A/40A |
Max. short circuit current | 60A/60A/60A/60A |
MPPT number/Max input strings number | 4/8 |
Max input power per MPPT | 24kW |
Battery | |
Battery Type | Li-ion |
Battery Voltage range | 150 – 800V |
Max. charge / discharge power | 55kW |
Max. charge / discharge current | 70A*2 |
No. of Battery Input | 2 |
Communication | CAN/RS485 |
Output AC (Grid side) | |
Rated output power | 50kW |
Max. apparent output power | 50kVA |
Rated grid voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
The grid voltage range | 304-460V |
Relay trip current/Duration | 20.8A/10ms |
Rated grid frequency | 50Hz/60Hz |
AC grid frequency range | 45-55Hz/55-65Hz |
Rated grid output current | 76.0A/72.2A |
Max. output current | 76.0A/72.2A |
Power Factor | > 0.99 (0.8 leading – 0.8 lagging) |
THDi | < 3% |
Input AC (Grid side) | |
Max. AC passthrough current | 152A/144.4A |
Rated input voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated input frequency | 50Hz/60Hz |
Input AC (Generator) | |
Max. input power | 50kW |
Rated input current | 76.0A/72.2A |
Rated input voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated input frequency | 50Hz/60Hz |
Output AC (Back-up) | |
Rated output power | 50kW |
Max. apparent output power | 1.6 times of rated power, 2 S |
Back-up switch time | <10ms |
Rated output voltage | 3/N/PE, 220V/380V, 3/N/PE, 230V/400V |
Rated frequency | 50Hz/60Hz |
Rated output current | 76.0A/72.2A |
Max. imbalance power per phase | 33% rated power |
THDv(@linear load) | <2% |
Efficiency | |
Max. efficiency | 97.8% |
EU efficiency | 97.4% |
BAT charged by PV Max. efficiency | 98.5% |
BAT charged/discharged to AC Max. efficiency | 97.5% |
MPPT Efficiency | 99.9% |
Protection | |
Anti-islanding protection | Yes |
Insulation Resistor detection | Yes |
Output over current protection | Yes |
Output short protection | Yes |
Output over voltage protection | Yes |
DC switch | Yes |
DC reverse polarity protection | Yes |
DC Surge Protection/AC Surge Protection | Type II |
Integrated AFCI 2.0 | Optional |
General data | |
Dimensions(W/H/D) | 530*880*290mm |
Weight | 73kg |
Topology | Transformerless |
Self consumption (Night) | <35W |
Operation temperature range | -25℃~+60℃ |
Relative humidity | 0-95% |
Ingress protection | IP66 |
Cooling concept | Intelligent redundant fan-cooling |
Max.operation altitude | 4000m |
Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1/ EN 50549-10, VDE 0126 / UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA N° 140, DE 21 DE MARÇO DE 2022 |
Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
Features | |
PV connection | MC4 Quick connection plug |
Battery connection | Terminal connector |
AC connection | Terminal Block |
Display | LED + Bluetooth + APP |
Communication | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
