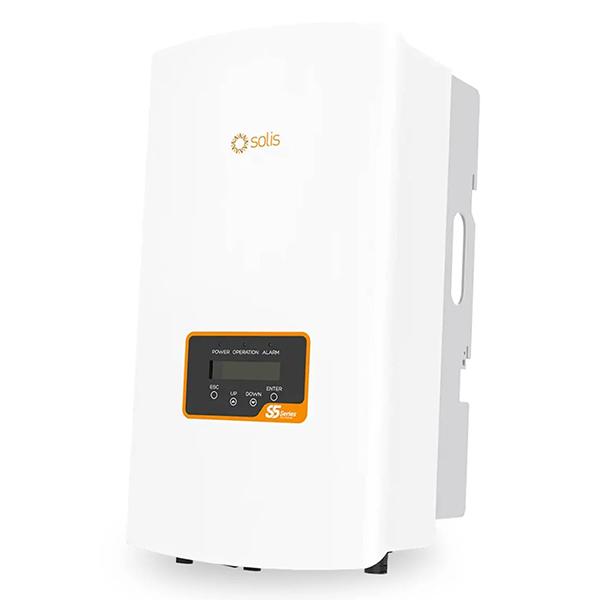

Solis S5-GR3P5K 5kW 3-Phase On-Grid Inverter
Brand: Solis
● In stock — ready to deliver
5kW Three-Phase On-Grid Solar Inverter
7.5kW Maximum PV Input Power with dual MPPT
98.3% Maximum Efficiency for high solar energy conversion
160–1000V MPPT Voltage Range for flexible solar panel compatibility
IP66 Protection with transformerless design & 5 years warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Solis 5kW 3-Phase On-Grid Inverter Price in Bangladesh
The Solis S5-GR3P5K 5kW 3-Phase On-Grid Inverter is designed to deliver efficient and reliable solar power conversion for residential and commercial applications. Featuring advanced MPPT technology, high conversion efficiency, and intelligent grid-connected performance, it helps maximise solar energy production while reducing electricity costs. Its three-phase output ensures stable power distribution, making it a suitable solution for modern solar installations. Buy the original Solis 5kW On-Grid Inverter in Bangladesh from Cyber Energy BD at a competitive price.
Solis S5-GR3P5K On-Grid Inverter Full Specification
Parameter | Value |
|---|---|
Input (DC) | |
Recommended max. PV power | 7.5 kW |
Max. input voltage | 1100 V |
Rated voltage | 600 V |
Start-up voltage | 180 V |
MPPT voltage range | 160 – 1000 V |
Max. input current | 16 A / 16 A |
Max. short circuit current | 20 A / 20 A |
MPPT number / Max. input strings number | 2 / 2 |
Output (AC) | |
Rated output power | 5 kW |
Max. apparent output power | 5.5 kVA |
Max. output power | 5.5 kW |
Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
Rated grid frequency | 50 Hz / 60 Hz |
Rated grid output current | 7.6 A / 7.2 A |
Max. output current | 7.9 A |
Power factor | > 0.99 (0.8 leading – 0.8 lagging) |
THDi | < 2% |
Efficiency | |
Max. efficiency | 98.3% |
EU efficiency | 97.7% |
Protection | |
DC reverse-polarity protection | Yes |
Short circuit protection | Yes |
Output over current protection | Yes |
Surge protection | Yes |
Grid monitoring | Yes |
Anti-islanding protection | Yes |
Temperature protection | Yes |
Multi peak scan | Yes |
Integrated AFC12.0 | Optional |
Integrated DC switch | Yes |
General Data | |
Dimensions (W × H × D) | 310 × 563 × 219 mm |
Weight | 16.9 kg |
Topology | Transformerless |
Self-consumption (night) | < 1 W |
Operating ambient temperature range | -25 – +60°C |
Relative humidity | 0 – 100% |
Ingress protection | IP66 |
Noise emission (typical) | < 30 dB(A) |
Cooling concept | Natural cooling |
Max. operation altitude | 4000 m |
Certification | |
Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR-2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 |
Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
Features | |
DC connection | MC4 connector |
AC connection | Quick connection plug |
Display | LCD |
Communication | RS485, Optional: Wi-Fi, GPRS |
